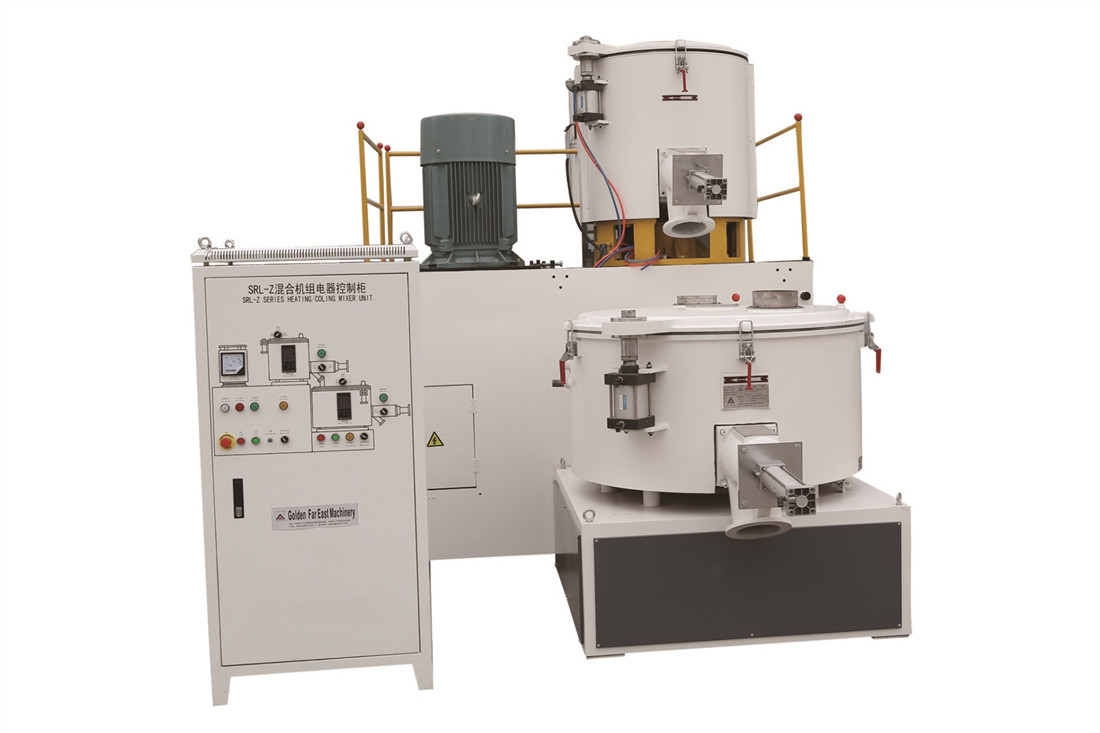

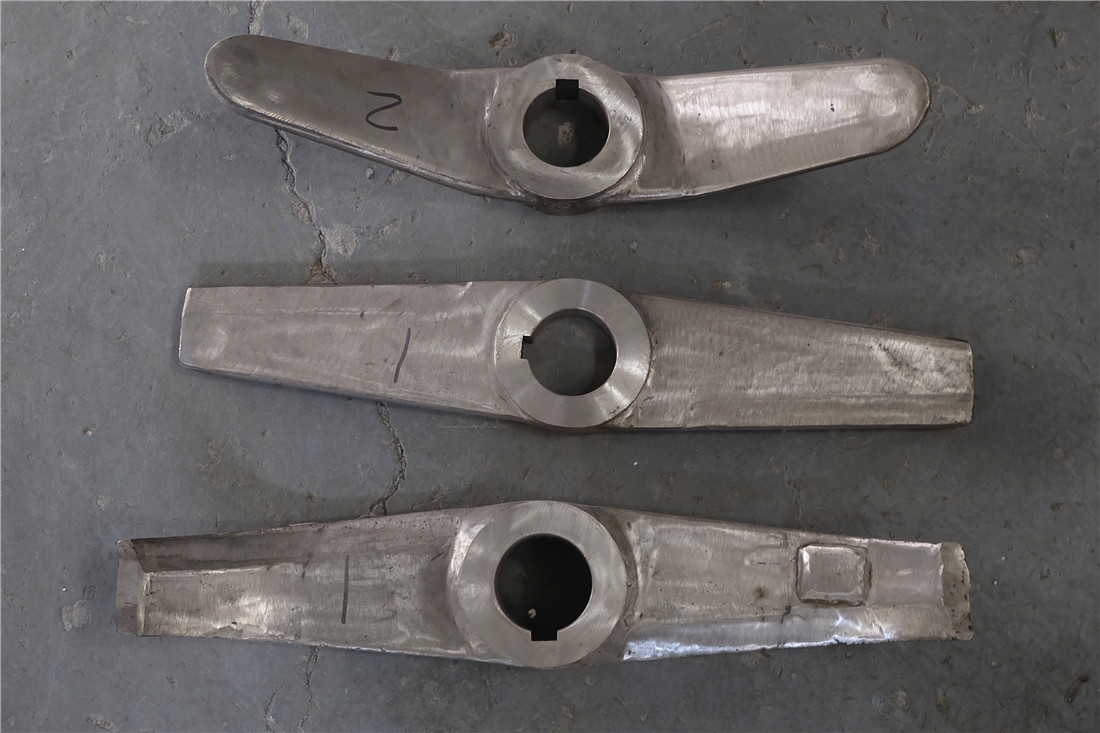

The High speed mixer machine is developed through introducing, digesting and absorbing foreign advanced technology. The vacuum mixing principle is adopted in mixing materials. The electric meters all adopt imported famous ones; It has advantages, such as high auto level, fast mixing, its blades are precisely cast with stainless steel and passed the dynamic and static balancing test. Especial the blades of its cooling machine adopt the most advanced screw stirring structure in the world; there is no dead angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly; its mixing efficiency has reached foreign advanced level.
Model | Volume
(L) |
Effective Volume
(L) |
Speed
(r/min) |
Motor power
(kw) |
Water consumption
(t/h) |
Heating power
(Kw) |
Dispatch method |
SRL-Z100/200 | 100/200 | 75/130 | 650/1300/130 | 14/22/11 | 5 | 6 | air powered |
SRL-Z200/500 | 200/500 | 150/320 | 480/1000/110 | 30/42/11 | 5.8 | 6 | air powered |
SRL-Z300/600 | 300/600 | 225/380 | 480/960/100 | 40/50/11 | 6 | 9 | air powered |
SRL-Z500/1000 | 500/1000 | 374/640 | 410/830/71 | 47/67/15 | 7 | 9 | air powered |
SRL-Z mixer unit is used in mixing, stirring, drying, coloring and other technique of plastics, rubber,chemicals for daily use. It is an ideal advance equipment of producing plastics plate, pipe, and special-shaped material and degradation plastics.
The High speed mixer for plastic has many advantages, such as fast cooling, discharging thoroughly; its mixing efficiency has reached foreign advanced level.
