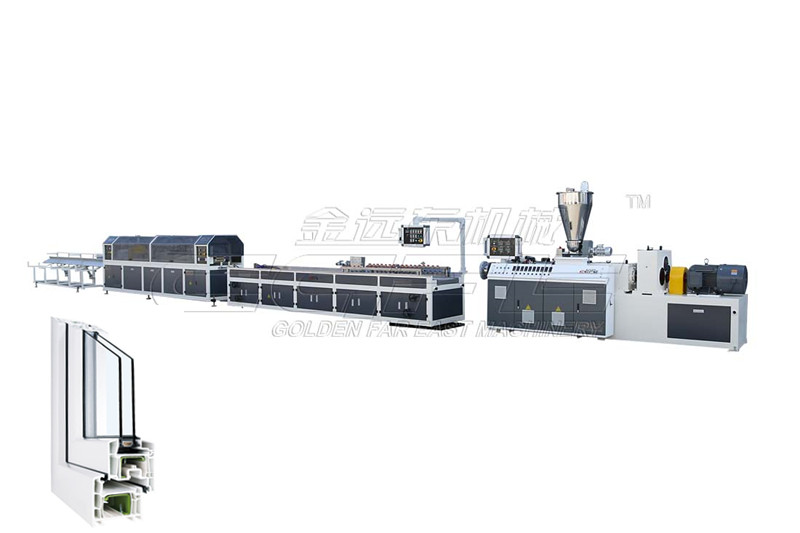

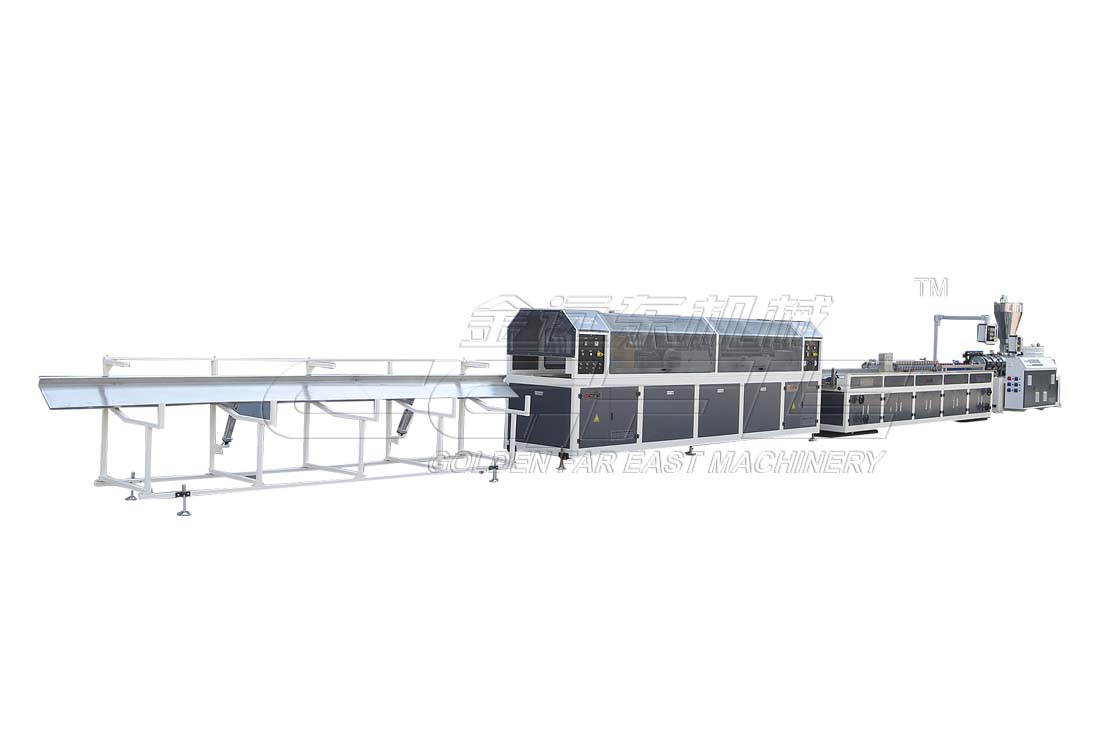

PVC Window & Door & Windowsill Profile Production Line

This production line to produce PVC profiles such as: window& door profile, windowsill and so on. Main extruder is conical twin screw extruder.

Product Description & Video

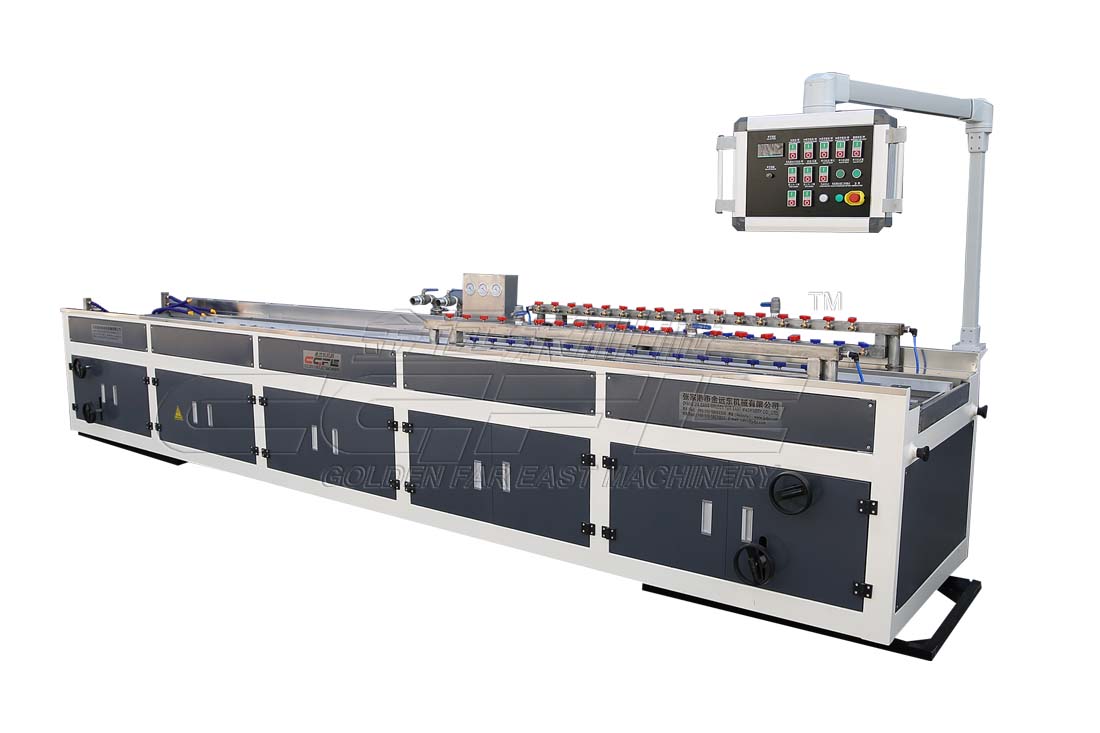

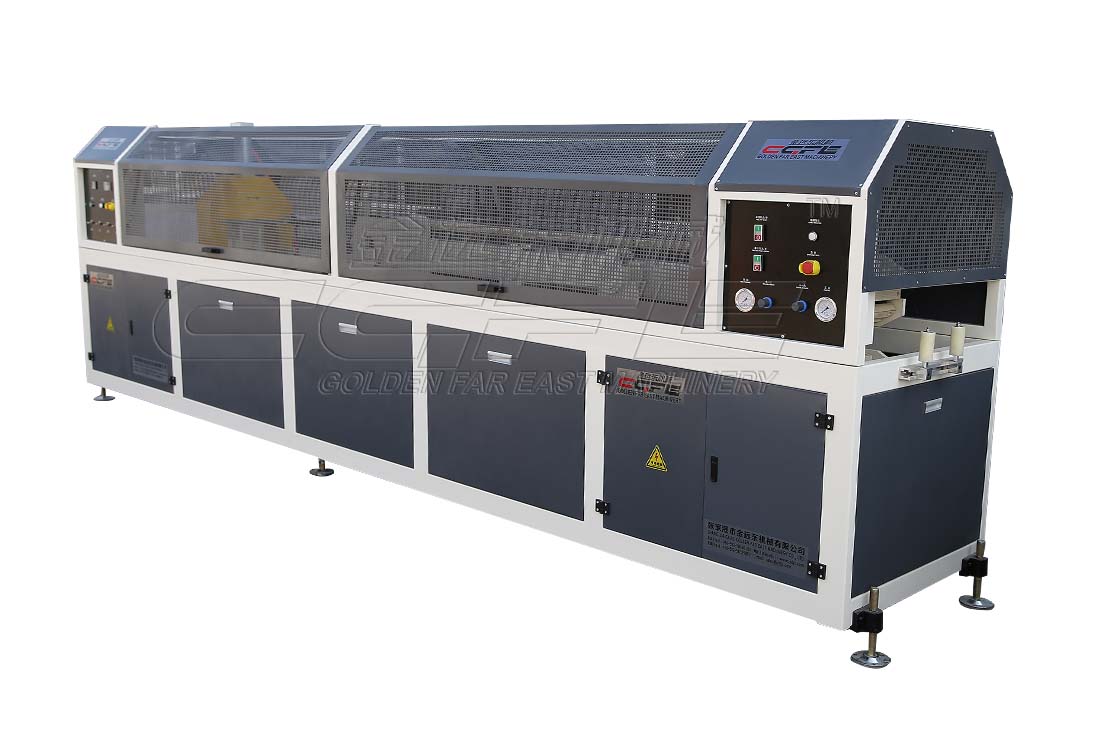

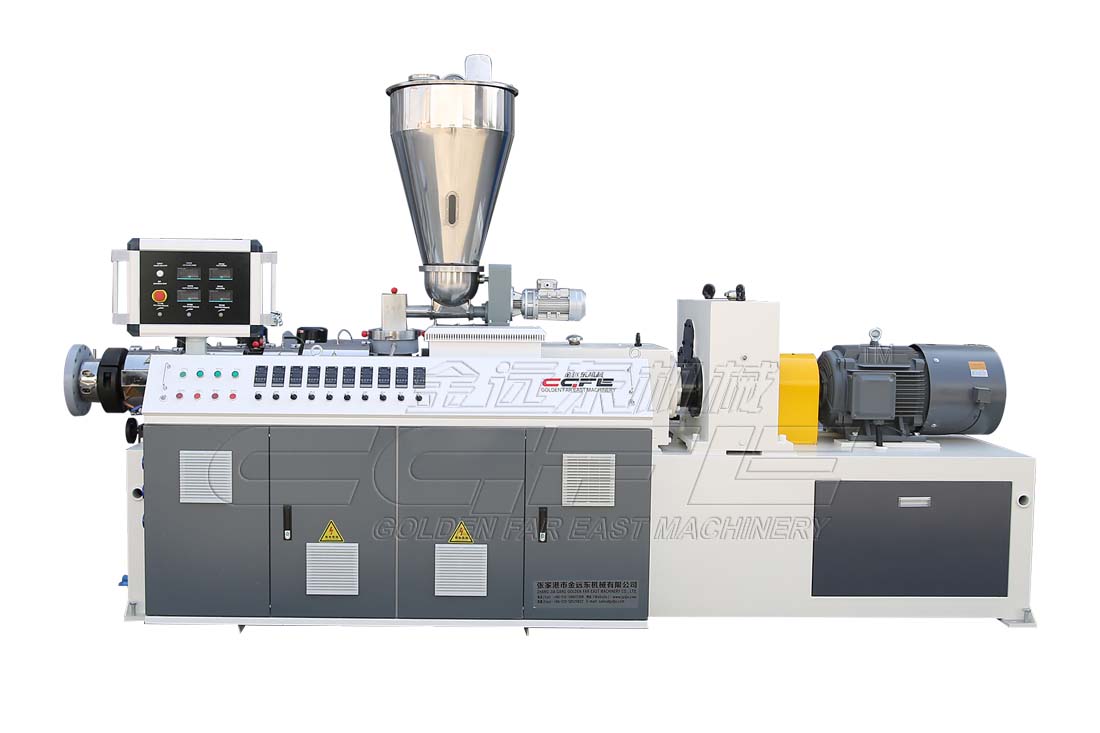

PVC Window & Door & Windowsill Profile Production Line is optimized in design, referring to the newest foreign technology. This unit has the advantages of plasticizing even, small speed ratio of cutting, high output, long use-life and so on. The unit is composed of cone double-screw extruder, vacuum calibration table, puller, cutting machine. The main machine adopts the inverter or DC speed counter. Temperature controller adopts FUJI, OMRON etc. co-extruder is optioned.

Technical parameters:

Model	YF180	YF240	YF240	YF600
Extruder(ET-D)	51/105	65/132	80/156	80/156
Main motor (kw)	15	37	55	55
Length of vacuum calibration table(mm)	5000	6000	6000 or 8000	8000

Advantage

This PVC Window & Door & Windowsill Profile Production Line to produce PVC profiles such as: window& door profile, windowsill and so on. Main extruder is conical twin screw extruder.
