Raw Material and Characteristics (provided by customer)

1.1 Main material: PVC powders (SG-5) + Caco3, soft PVC
1.2 Additive: Stabilizer, CPE, ACR, DOP, TiO2
1.3 All the materials should be mixed completely
1- Main Machine Installation Instruction (provided by customer)
2.1 Space in workshop

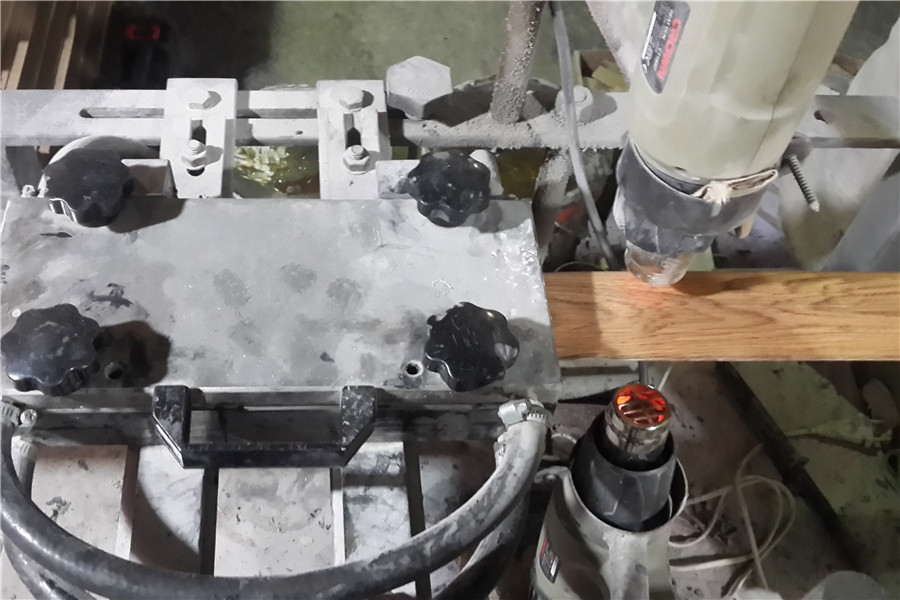

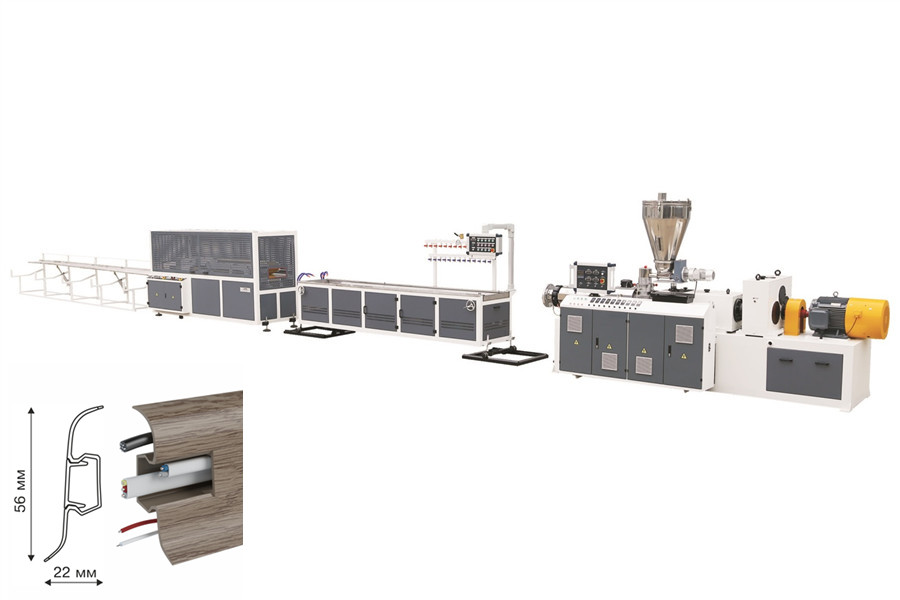

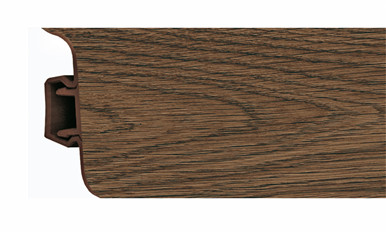

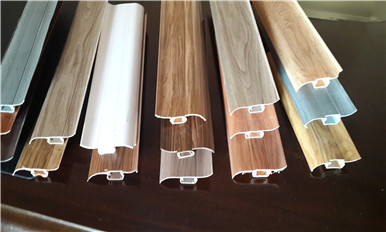

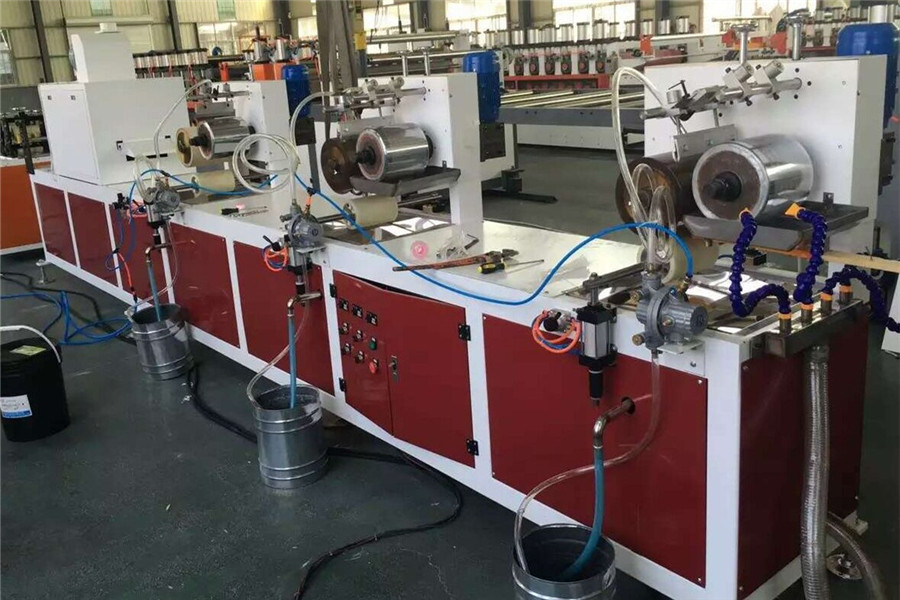

PVC Skirting Board Production Line: about 22.5m (length) X 2.5m (width) X 2.85m (height), is adjustable up to your workshop. (Include inline-skirting printer)
2.2 Electricity network: 380V 50HZ 3-phase
2.3 Wire/cables: wires/cables from customer’s general control cabinet to the main control cabinet for profile extrusion line; all electrical cable from the main control cabinet to each machine.
2.4 Total power installed 110KW for skirting board (Extrusion Line + Mixer). Actual power consumption percentage: 80%;
2.5 Water requirement: 0.5-1T/h and water can be circulated by means of a water pool (built by customer);

Technical parameters:

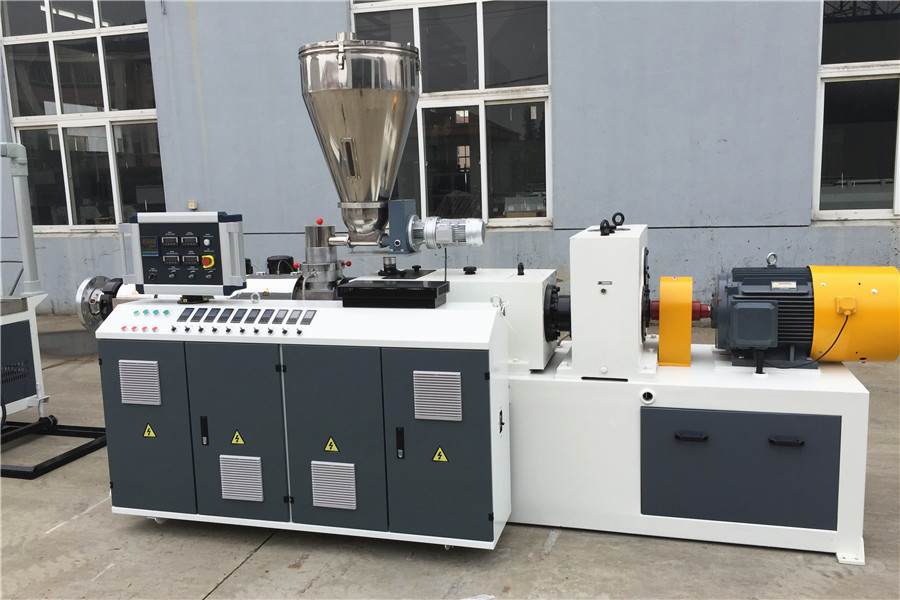

PVC skirting extruder machine is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produced all sorts of PVC plastic, profile, plate material, sheet material, bar material and granulation.
